CE SERIES - Plastic boxes with opening for pivot for electrical and electronics.
-
Line 720
Intended for outdoor IP65
Highest level of resistance to impact IK10
Self-extinguishing
Double isolation
UV Protection
-
-
.
-
Code
722
728
726
Code w/Chassis
722C
728C
726C
Width (A)
320
320
321
Height (B)
320
320
321
Depth (C)
198
198
198
Cover (D)
18
18
18
Base (E)
161
161
163
Distance between fixing holes (F)
220
220
268
Distance between fixing holes (G)
267
267
224
Useful Internal Depth
178
178
179
Chassis
278 x 278
278 x 278
278 x 278
Material
TAUV*
TAUV*
PC**
Max energy of dissipation heat (Wh) 25/55°C
58
58
58
Max energy of dissipation heat (Wh) 20/60°C
78
78
78
Color
Beige
Gray
Gray / Transp.

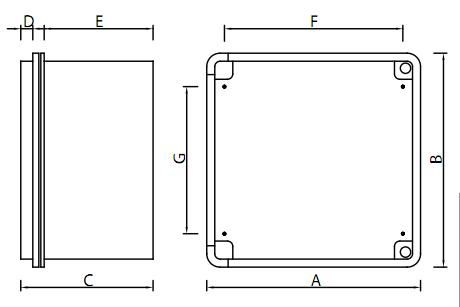

A= Width B= Height C= Depth D= Cover E= Base F, G= Distance between fixing holes H= Useful Internal Depth (with Chassis) S= Chassis (Internal Area) * TAUV= UV-protected self-extinguishing thermoplastic ** PC= Polycarbonate Emaxm= Max energy of dissipation heat All measurements in mm with +/-1mm Specifications are subject to change without notice - The images are merely illustrative.
