GR SERIES - Plastic cabinets with rail din

 Titutlo


      Line GR4300

      Intended for outdoor IP65
      Highest level of resistance to impact IK10
      Self-extinguishing
      Double isolation
      UV Protection


  • .



  • Code

    GR4302

    GR4306

    Width (A)

    483

    483

    Height (B)

    466

    470

    Depth (C)

    176

    178

    Cover (D)

    44

    45

    Base (E)

    118

    118

    Distance between fixing holes (F)

    408

    413

    Distance between fixing holes (G)

    408

    413

    Chassis

    422 x 422

    422 x 422

    Material

    TAUV*

    PC**

    Max energy of dissipation heat (Wh) 25/55°C

    103

    103

    Max energy of dissipation heat (Wh) 20/60°C

    147

    147

    Color

    Beige

    Gray / Cover Transp.

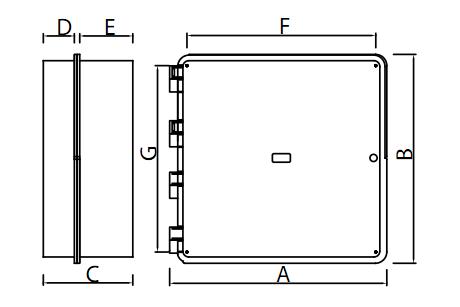

  • A= Width B= Height C= Depth D= Cover E= Base F, G= Distance between fixing holes H= Useful Internal Depth (with Chassis) S= Chassis (Internal Area) * TAUV= UV-protected self-extinguishing thermoplastic ** PC= Polycarbonate Emaxm= Max energy of dissipation heat All measurements in mm with +/-1mm Specifications are subject to change without notice - The images are merely illustrative.
