G SERIES - Plastic cabinet for electrical and electronic equipment.
-
Line 2900
Highest level of hermeticity IP67 / IP65
Highest level of resistance to impact IK10
Self-extinguishing
Double isolation
UV Protection
-
-
.
-
Code w/Chassis
2901CH
2902CH
2908CH
2906CH
2907CH
Code wo/Chassis
2901H
2902H
2908H
2906H
2907H
Width (A)
302
302
302
303
303
Height (B)
366
366
366
367
367
Depth (C)
154
154
154
155
155
Cover (D)
69
69
69
70
70
Base (E)
69
69
69
70
70
Distance between fixing holes (F)
233
233
233
235
235
Distance between fixing holes (G)
312
312
312
313
313
Useful Internal Depth (H)
133
133
133
135
135
Chassis
244 x 322
244 x 322
244 x 322
244 x 322
244 x 322
Material
TAUV*
TAUV*
TAUV*
PC**
PC**
Max energy of dissipation heat (Wh) 25/55°C
50
50
50
50
50
Max energy of dissipation heat (Wh) 20/60°C
72
72
72
72
72
Color
Blue
Beige
Gray
Gray / Transp.
Gray

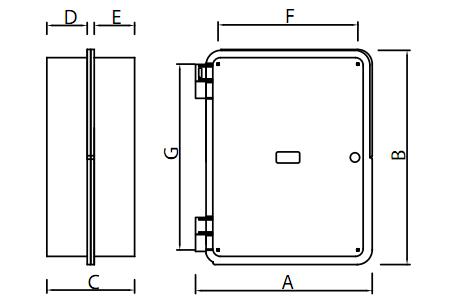

A= Width B= Height C= Depth D= Cover E= Base F, G= Distance between fixing holes H= Useful Internal Depth (with Chassis) S= Chassis (Internal Area) * TAUV= UV-protected self-extinguishing thermoplastic ** PC= Polycarbonate Emaxm= Max energy of dissipation heat All measurements in mm with +/-1mm Specifications are subject to change without notice - The images are merely illustrative.
