G SERIES - Plastic cabinet for electrical and electronic equipment.
-
Line 2900-1
Highest level of hermeticity IP67 / IP65
Highest level of resistance to impact IK10
Self-extinguishing
Double isolation
UV Protection
-
-
.
-
Code w/Chassis
2901-1CH
2902-1CH
2908-1CH
2906-1CH
2907-1CH
Code wo/Chassis
2901-1H
2902-1H
2908-1H
2906-1H
2907-1H
Width (A)
302
302
302
303
303
Height (B)
366
366
366
367
367
Depth (C)
176
176
176
180
180
Cover (D)
44
44
44
45
45
Base (E)
118
118
118
120
120
Distance between fixing holes (F)
233
233
233
235
235
Distance between fixing holes (G)
312
312
312
313
313
Useful Internal Depth (H)
155
155
155
157
157
Chassis
244 x 322
244 x 322
244 x 322
244 x 322
244 x 322
Material
TAUV*
TAUV*
TAUV*
PC**
PC**
Max energy of dissipation heat (Wh) 25/55°C
54
54
54
54
54
Max energy of dissipation heat (Wh) 20/60°C
77
77
77
77
77
Color
Blue
Beige
Gray
Gray / Transp.
Gray

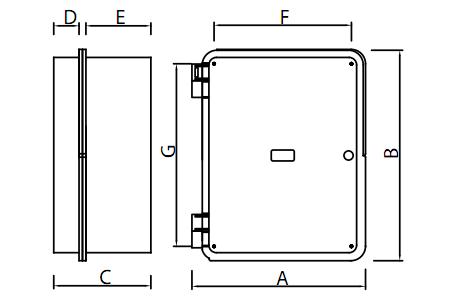

A= Width B= Height C= Depth D= Cover E= Base F, G= Distance between fixing holes H= Useful Internal Depth (with Chassis) S= Chassis (Internal Area) * TAUV= UV-protected self-extinguishing thermoplastic ** PC= Polycarbonate Emaxm= Max energy of dissipation heat All measurements in mm with +/-1mm Specifications are subject to change without notice - The images are merely illustrative.
