G SERIES - Plastic cabinet for electrical and electronic equipment.
-
Line 3900
Highest level of hermeticity IP67 / IP65
Highest level of resistance to impact IK10
Self-extinguishing
Double isolation
UV Protection
-
-
.
-
Code w/Chassis
3901CH
3902CH
3908CH
3906CH
3907CH
Code wo/Chassis
3901H
3902H
3908H
3906H
3907H
Width (A)
380
380
380
381
381
Height (B)
464
464
464
468
468
Depth (C)
154
154
154
155
155
Cover (D)
69
69
69
70
70
Base (E)
69
69
69
70
70
Distance between fixing holes (F)
308
308
308
310
310
Distance between fixing holes (G)
408
408
408
413
413
Useful Internal Depth (H)
133
133
133
135
135
Chassis
319 x 422
319 x 422
319 x 422
319 x 422
319 x 422
Material
TAUV*
TAUV*
TAUV*
PC**
PC**
Max energy of dissipation heat (Wh) 25/55°C
72
72
72
72
72
Max energy of dissipation heat (Wh) 20/60°C
102
102
102
102
102
Color
Blue
Beige
Gray
Gray / Transp.
Gray

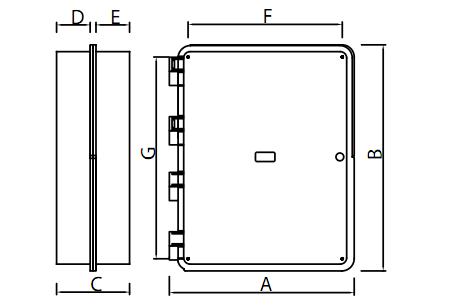

A= Width B= Height C= Depth D= Cover E= Base F, G= Distance between fixing holes H= Useful Internal Depth (with Chassis) S= Chassis (Internal Area) * TAUV= UV-protected self-extinguishing thermoplastic ** PC= Polycarbonate Emaxm= Max energy of dissipation heat All measurements in mm with +/-1mm Specifications are subject to change without notice - The images are merely illustrative.
