G SERIES - Plastic cabinet for electrical and electronic equipment.
-
Line 3900-1
Highest level of hermeticity IP67 / IP65
Highest level of resistance to impact IK10
Self-extinguishing
Double isolation
UV Protection
-
-
.
-
Code w/Chassis
3901-1CH
3902-1CH
3908-1CH
3906-1CH
3907-1CH
Code wo/Chassis
3901-1H
3902-1H
3908-1H
3906-1H
3907-1H
Width (A)
380
380
380
381
381
Height (B)
464
464
464
468
468
Depth (C)
176
176
176
180
180
Cover (D)
44
44
44
45
45
Base (E)
118
118
118
120
120
Distance between fixing holes (F)
308
308
308
310
310
Distance between fixing holes (G)
408
408
408
413
413
Useful Internal Depth (H)
155
155
155
157
157
Chassis
319 x 422
319 x 422
319 x 422
319 x 422
319 x 422
Material
TAUV*
TAUV*
TAUV*
PC**
PC**
Max energy of dissipation heat (Wh) 25/55°C
82
82
82
82
82
Max energy of dissipation heat (Wh) 20/60°C
115
115
115
115
115
Color
Blue
Beige
Gray
Gray / Transp.
Gray

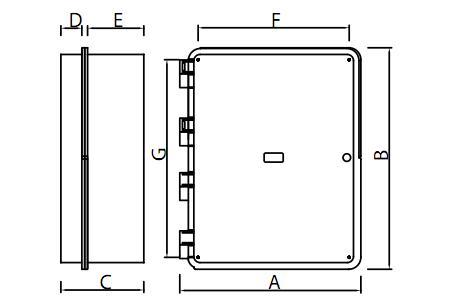

A= Width B= Height C= Depth D= Cover E= Base F, G= Distance between fixing holes H= Useful Internal Depth (with Chassis) S= Chassis (Internal Area) * TAUV= UV-protected self-extinguishing thermoplastic ** PC= Polycarbonate Emaxm= Max energy of dissipation heat All measurements in mm with +/-1mm Specifications are subject to change without notice - The images are merely illustrative.
