G SERIES - Plastic cabinet for electrical and electronic equipment.
-
Line 4300
Highest level of hermeticity IP67 / IP65
Highest level of resistance to impact IK10
Self-extinguishing
Double isolation
UV Protection
-
-
.
-
Code w/Chassis
4301CH
4302CH
4308CH
4306CH
4307CH
Code wo/Chassis
4301H
4302H
4308H
4306H
4307H
Width (A)
483
483
483
483
483
Height (B)
466
466
466
470
470
Depth (C)
154
154
154
155
155
Cover (D)
69
69
69
70
70
Base (E)
69
69
69
70
70
Distance between fixing holes (F)
408
408
408
413
413
Distance between fixing holes (G)
408
408
408
413
413
Useful Internal Depth (H)
133
133
133
135
135
Chassis
422 x 422
422 x 422
422 x 422
422 x 422
422 x 422
Material
TAUV*
TAUV*
TAUV*
PC**
PC**
Max energy of dissipation heat (Wh) 25/55°C
99
99
99
99
99
Max energy of dissipation heat (Wh) 20/60°C
140
140
140
140
140
Color
Blue
Beige
Gray
Gray / Transp.
Gray

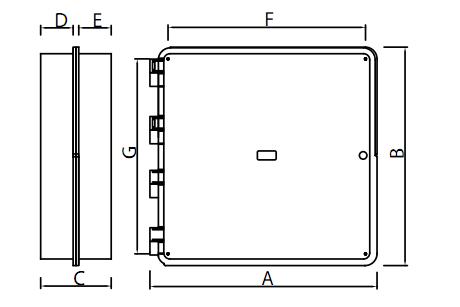

A= Width B= Height C= Depth D= Cover E= Base F, G= Distance between fixing holes H= Useful Internal Depth (with Chassis) S= Chassis (Internal Area) * TAUV= UV-protected self-extinguishing thermoplastic ** PC= Polycarbonate Emaxm= Max energy of dissipation heat All measurements in mm with +/-1mm Specifications are subject to change without notice - The images are merely illustrative.
