G SERIES - Plastic cabinet for electrical and electronic equipment.
-
Line 4300-1
Highest level of hermeticity IP67 / IP65
Highest level of resistance to impact IK10
Self-extinguishing
Double isolation
UV Protection
-
-
.
-
Code w/Chassis
4301-1CH
4302-1CH
4308-1CH
4306-1CH
4307-1CH
Code wo/Chassis
4301-1H
4302-1H
4308-1H
4306-1H
4307-1H
Width (A)
483
483
483
483
483
Height (B)
466
466
466
470
470
Depth (C)
176
176
176
178
178
Cover (D)
44
44
44
45
45
Base (E)
118
118
118
120
120
Distance between fixing holes (F)
408
408
408
413
413
Distance between fixing holes (G)
408
408
408
413
413
Useful Internal Depth (H)
155
155
155
157
157
Chassis
422 x 422
422 x 422
422 x 422
422 x 422
422 x 422
Material
TAUV*
TAUV*
TAUV*
PC**
PC**
Max energy of dissipation heat (Wh) 25/55°C
103
103
103
103
103
Max energy of dissipation heat (Wh) 20/60°C
147
147
147
147
147
Color
Blue
Beige
Gray
Gray / Transp.
Gray

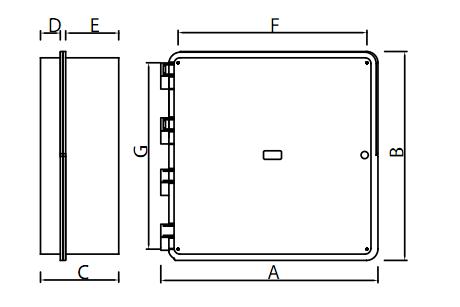

A= Width B= Height C= Depth D= Cover E= Base F, G= Distance between fixing holes H= Useful Internal Depth (with Chassis) S= Chassis (Internal Area) * TAUV= UV-protected self-extinguishing thermoplastic ** PC= Polycarbonate Emaxm= Max energy of dissipation heat All measurements in mm with +/-1mm Specifications are subject to change without notice - The images are merely illustrative.
