G SERIES - Plastic cabinet for electrical and electronic equipment.
-
Line 4310
Highest level of hermeticity IP67 / IP65
Highest level of resistance to impact IK10
Self-extinguishing
Double isolation
UV Protection
-
-
.
-
Code w/Chassis
4311CH
4312CH
4318CH
4316CH
4317CH
Code wo/Chassis
4311H
4312H
4318H
4316H
4317H
Width (A)
483
483
483
483
483
Height (B)
466
466
466
470
470
Depth (C)
202
202
202
206
206
Cover (D)
69
69
69
70
70
Base (E)
118
118
118
118
118
Distance between fixing holes (F)
408
408
408
413
413
Distance between fixing holes (G)
408
408
408
413
413
Useful Internal Depth (H)
181
181
181
182
182
Chassis
422 x 422
422 x 422
422 x 422
422 x 422
422 x 422
Material
TAUV*
TAUV*
TAUV*
PC**
PC**
Max energy of dissipation heat (Wh) 25/55°C
108
108
108
108
108
Max energy of dissipation heat (Wh) 20/60°C
155
155
155
155
155
Color
Blue
Beige
Gray
Gray / Transp.
Gray

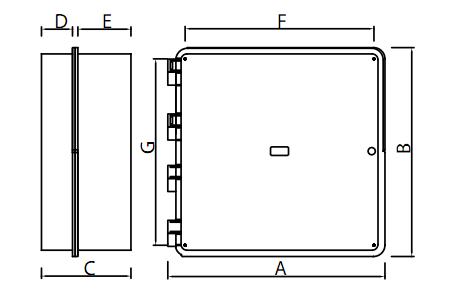

A= Width B= Height C= Depth D= Cover E= Base F, G= Distance between fixing holes H= Useful Internal Depth (with Chassis) S= Chassis (Internal Area) * TAUV= UV-protected self-extinguishing thermoplastic ** PC= Polycarbonate Emaxm= Max energy of dissipation heat All measurements in mm with +/-1mm Specifications are subject to change without notice - The images are merely illustrative.
