MP SERIES - Plastic cabinets with multiple features for indutrial, tertiary and domestic installations.

 Titutlo

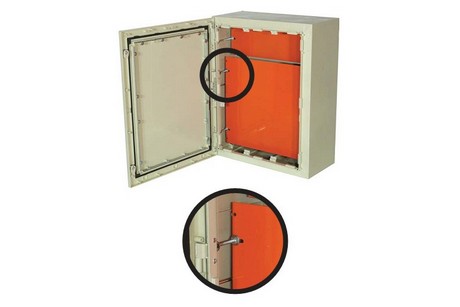

      Adjustable Chassis

      The adjustable chassis allows the placement of electrical components whose commanders have the option to get to the counter-top or cabinet door. The adjustable chassis material is metal sheet DD No. 16. The adjustment is made using a threaded component.


  • .

  • The regulation is made using a threaded component that is fixed trough inserts to the bottom and the frame of the cabinet side.




  • Code

    Cabinet

    Width (A)

    Height (B)

    C

    D

    E

    MCHR139

    M5050 M6450 M7850

    470

    139

    427

    6.5

    -

    MCHR270

    M5050 M6450 M7850

    470

    270

    427

    6.5

    140

    MCHR410

    M6450 M7850

    470

    410

    427

    6.5

    280

    MCHR550

    M7850

    470

    550

    427

    6.5

    420


  • A= Width B= Height C= Depth D= Cover E= Base F, G= Distance between fixing holes H= Useful Internal Depth (with Chassis) S= Chassis (Internal Area) * TAUV= UV-protected self-extinguishing thermoplastic ** PC= Polycarbonate Emaxm= Max energy of dissipation heat All measurements in mm with +/-1mm Specifications are subject to change without notice - The images are merely illustrative.
